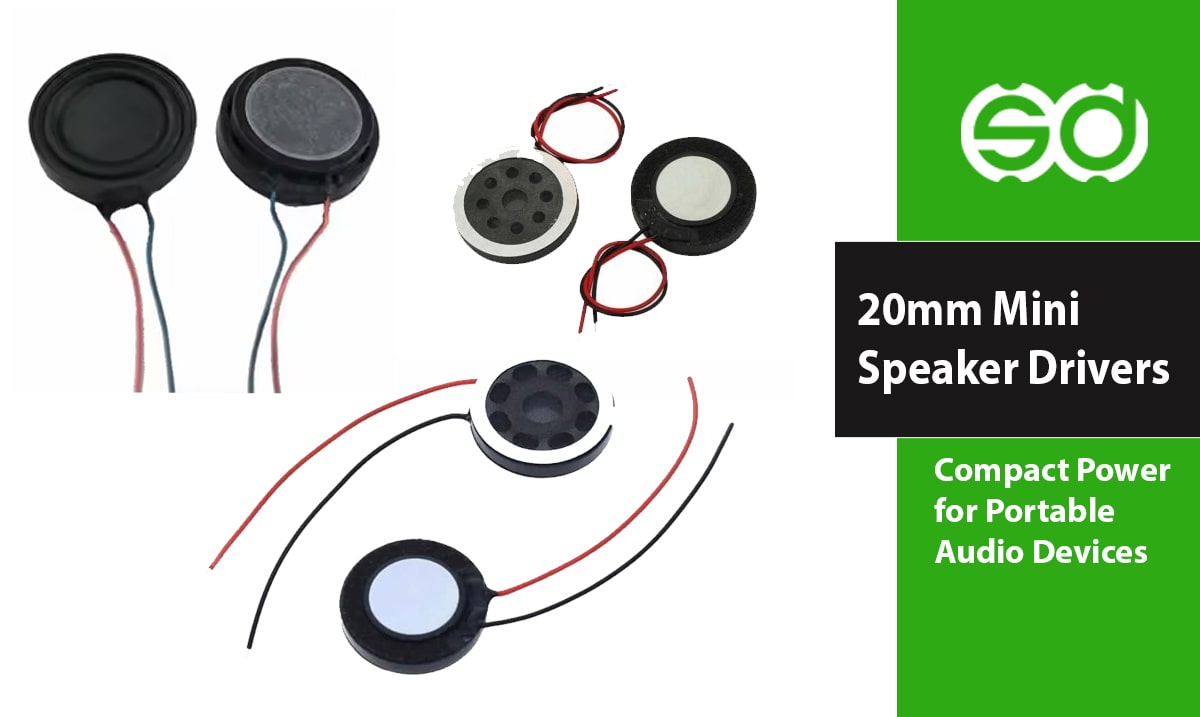

20mm Mini Speaker Drivers: Compact Power for Portable Audio Devices
20mm mini speaker drivers deliver impressive sound from an ultra-compact package, making them a popular choice for portable audio devices, wearables, and space-constrained applications. Their small diameter and optimized design allow manufacturers to balance size, efficiency, and audio quality in products like Bluetooth earphones, smart wearables, handheld gadgets, and miniature speakers.
Technical Specifications (Typical)
- Diameter: 20mm (0.79")
- Impedance: 8 Ω / 16 Ω common variants
- Power Rating: 0.2W – 1W RMS (model dependent)
- Frequency Response: ~300Hz – 20kHz (optimized for mid/high clarity)
- Sensitivity: 80–95 dB @ 1W/1m typical
- Magnet: Ferrite or Neodymium options for higher efficiency
Materials and Build
- Diaphragm Materials – Polyethylene terephthalate (PET), mylar, or lightweight paper blends for accurate midrange and extended treble response.
- Voice Coil – Copper-clad aluminum (CCA) or fine copper for efficient heat dissipation in small form factors.
- Magnetic System – Neodymium for stronger magnetic flux in compact magnets; ferrite for cost-effective builds.
- Frame & Suspension – Stamped steel or polymer frames with flexible surround for reliable excursion and low distortion.
Common Uses of 20mm Drivers
- True Wireless Earbuds – Primary driver for compact earbuds where space and weight are critical.
- Hearing Devices & Assistive Gadgets – Used in hearing-adjacent devices and personal communicators.
- Portable Speakers – Small Bluetooth minis and personal speakers that prioritize portability.
- Smart Wearables – Headbands, neckbands, and smart glasses requiring miniature audio transducers.
- IoT & Embedded Devices – Alarms, voice-feedback modules, and compact multimedia gadgets.
Advantages of 20mm Mini Speaker Drivers
- Compact Footprint – Fits into tight enclosures where larger drivers cannot.
- Lightweight – Reduces overall device weight, critical for wearables and portable products.
- Energy Efficient – Lower power requirements suit battery-operated devices.
- Good Mid/High Performance – Clear vocal and treble reproduction when paired with proper DSP or passive radiators.
- Cost-Effective – Mass-producible and economical for high-volume consumer electronics.
Design Considerations & Best Practices
- Enclosure Volume – Even small cavities benefit from tuned chambers or porting to improve low-frequency response.
- DSP & EQ – Use equalization and dynamic processing to compensate for limited bass extension and to shape a pleasing response.
- Magnet Choice – Neodymium magnets boost efficiency and SPL in compact drivers but add material cost.
- Thermal Management – Ensure voice coil cooling or conservative power ratings to avoid overheating in sealed, compact housings.
- Mechanical Isolation – Rubber gaskets and mounting pads reduce structure-borne vibrations in thin plastic enclosures.
Comparison — 20mm Drivers vs Larger Mini Drivers
| Aspect | 20mm Driver | 30–40mm Mini Driver |
|---|---|---|
| Size & Fit | Ultra-compact; ideal for true wireless and wearables | Requires more enclosure space; better for small portable speakers |
| Low-Frequency Output | Limited; relies on enclosure tuning and DSP | Better bass potential due to larger cone area |
| Efficiency | High with neodymium magnets; efficient for low-power devices | Generally similar, but may require more power for same SPL |
| Cost | Lower material cost; cheaper in volume | Moderately higher cost per driver |
Quality Testing & Specifications to Request
- Impedance Curve – Verify impedance vs frequency for amplifier matching.
- Frequency Response – Measured on-axis response with +/- dB tolerances specified.
- Distortion Figures – THD at relevant SPLs to ensure clean reproduction.
- Sensitivity Measurement – dB @ 1W/1m for estimated loudness and power planning.
- Durability Tests – Environmental and drop tests for mobile and wearable applications.
Why Choose 20mm Mini Drivers?
- Perfect For Miniaturized Products – When space, weight, and battery life are the top priorities.
- Optimized For Voice And Midrange – Ideal for clear speech and detailed mids in small devices.
- Flexible Integration – Works well with passive radiators, micro-ports, and DSP tuning strategies.
20mm mini speaker drivers are small in size but not in impact — they enable the compact, mobile audio experiences users expect from modern portable devices.
