LB-136 – Ultra-Wideband Dynamic Driver Earphones
The LB-136 delivers expansive sound with its powerful single dynamic driver, extending beyond typical frequency limits. Designed for audiophiles who value a natural and dynamic presentation, it is perfect for immersive music enjoyment with extended highs and deep lows.
Specifications
- Speaker: 1*LCP 10mm Dynamic Speaker Driver
- Impedance: 32 Ohm
- Sensitivity: 102 dB ± 1.5
- Frequency: 10Hz – 20,000Hz
- Earbud Case: 3D Printing
- Tuning: PE Tuning Tube Individual Tuning
Sound Frequency Test
To ensure optimal audio fidelity, this model is subjected to comprehensive sound frequency testing. Covering a broad range from 10Hz to 20,000Hz and rated at 102 dB ±1.5 sensitivity, it captures subtle nuances in both low-end rumble and high-frequency details. The result is a balanced and immersive listening experience for critical audio tasks and everyday enjoyment.

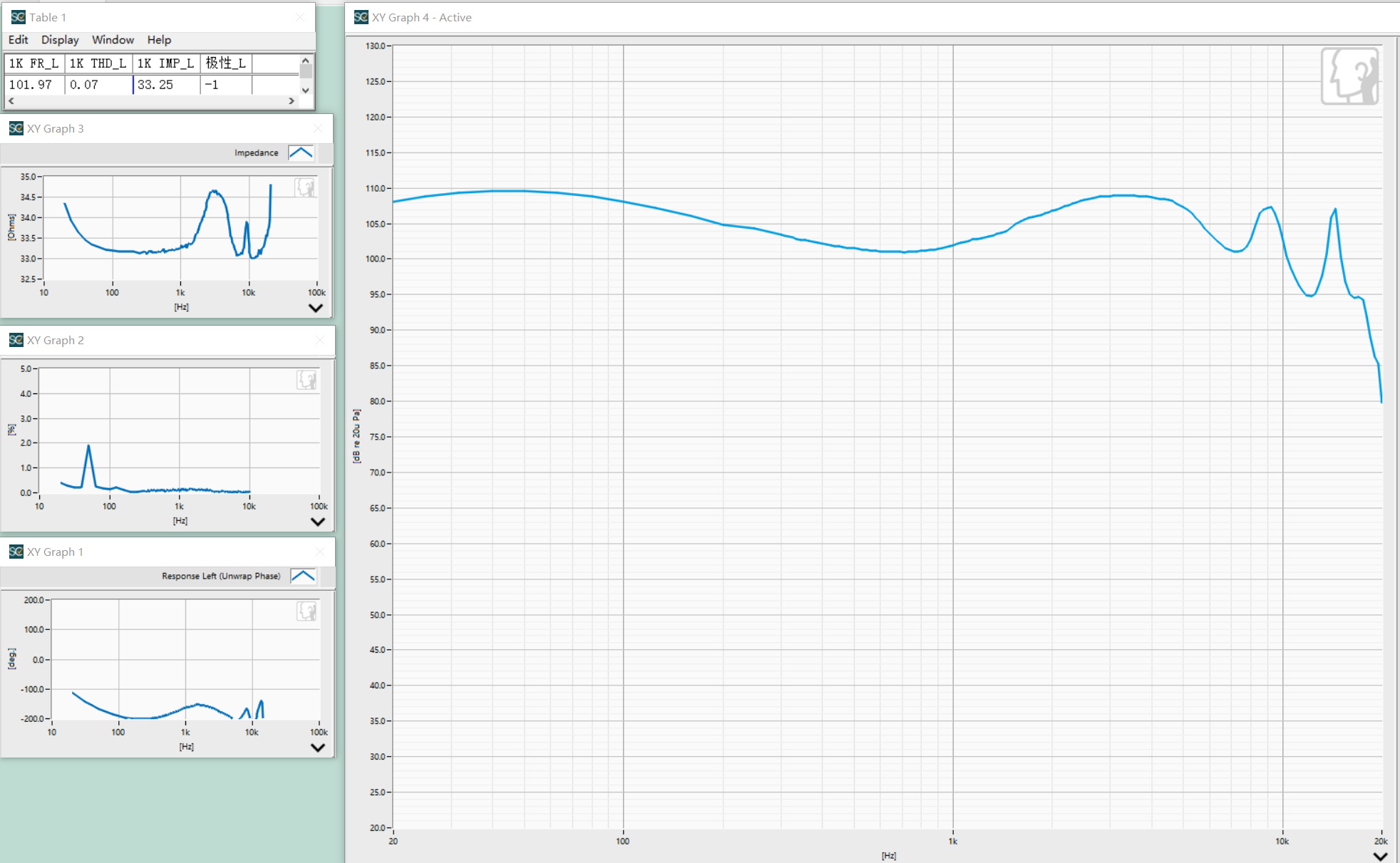

Here is the frequency test result:
Comparison with Other Models
| Model | Driver Type | Frequency Response | Sensitivity | Impedance | Earbud Case | Tuning |
|---|---|---|---|---|---|---|
| LB-136 | 1*LCP 10mm Dynamic Speaker Driver | 10Hz – 20,000Hz | 102 dB ± 1.5 | 16 Ohm | 3D Printed | Custom PE Tube |
| HY-135 | 1*10mm Dynamic Speaker+4*BA+1*Bone conduction speaker | 10Hz–20,000Hz | 104 dB ±1.5 | 12 Ohm | 3D Printing | PE Tuning Tube Individual Tuning |
| YY-132 | 1*10mm Dynamic Speaker+6*BA | 10Hz–20kHz | 112 dB | 12 Ohm | 3D Printing | PE tuning tube individual tuning |
| RS-137 | 1*Plate Speaker Driver | 10Hz-20000Hz | 100dB +/-1.5 | 16 Ohm | 3D printing | PE tuning tube individual tuning |
| YZ-133 | 10mm Dynamic Speaker+4BA | 10Hz-20000Hz | 104dB+/-1.5 | 16 ohm | 3D Printing | PE tuning tube individual tuning |
Sound Signature
The LB-136 features a dynamic sound signature with a slight V-shape—emphasized lows and highs—offering an energetic yet smooth listening experience. It produces punchy bass, open mids, and crisp highs with minimal distortion at high volumes.
Real-World Use Cases
- Excellent for electronic and cinematic soundtracks
- Great for listeners who want warmth and clarity in a single driver setup
- Ideal for daily listening and long sessions without fatigue
Certifications & Build Quality
The LB-136 is manufactured using RoHS-compliant components in ISO-certified facilities. Each shell is printed with high precision and assembled to meet professional acoustic standards.
Care & Maintenance Tips
- Avoid storing in extreme temperatures
- Use a soft cloth to clean the nozzle after each use
- Store in a dry and padded case when not in use
Customization Options
LB-136 supports shell color options, interchangeable cables, and optional tuning adjustments. Custom faceplate designs are available for a more personalized touch.
Conclusion
LB-136 showcases the power of single dynamic drivers when engineered properly. Its broad frequency response, premium construction, and custom tuning make it an excellent all-rounder for music lovers who value both power and finesse.
