YY-132 – Dual Balanced Armature Custom Earphones
Engineered for accuracy and speed, the YY-132 features a dual balanced armature setup housed in a custom 3D printed shell. It offers exceptional clarity, fast transient response, and minimal distortion—ideal for musicians, vocalists, and audiophiles who prioritize detail and neutrality in their sound signature.
Specifications
- Speaker: 1×10mm Dynamic Speaker + 6×Balanced Armature
- Impedance: 12 Ohm
- Sensitivity: 104 dB ± 1.5
- Frequency: 10Hz – 20,000Hz
- Earbud Case: 3D Printed Shell
- Tuning: PE Tuning Tube Individual Tuning

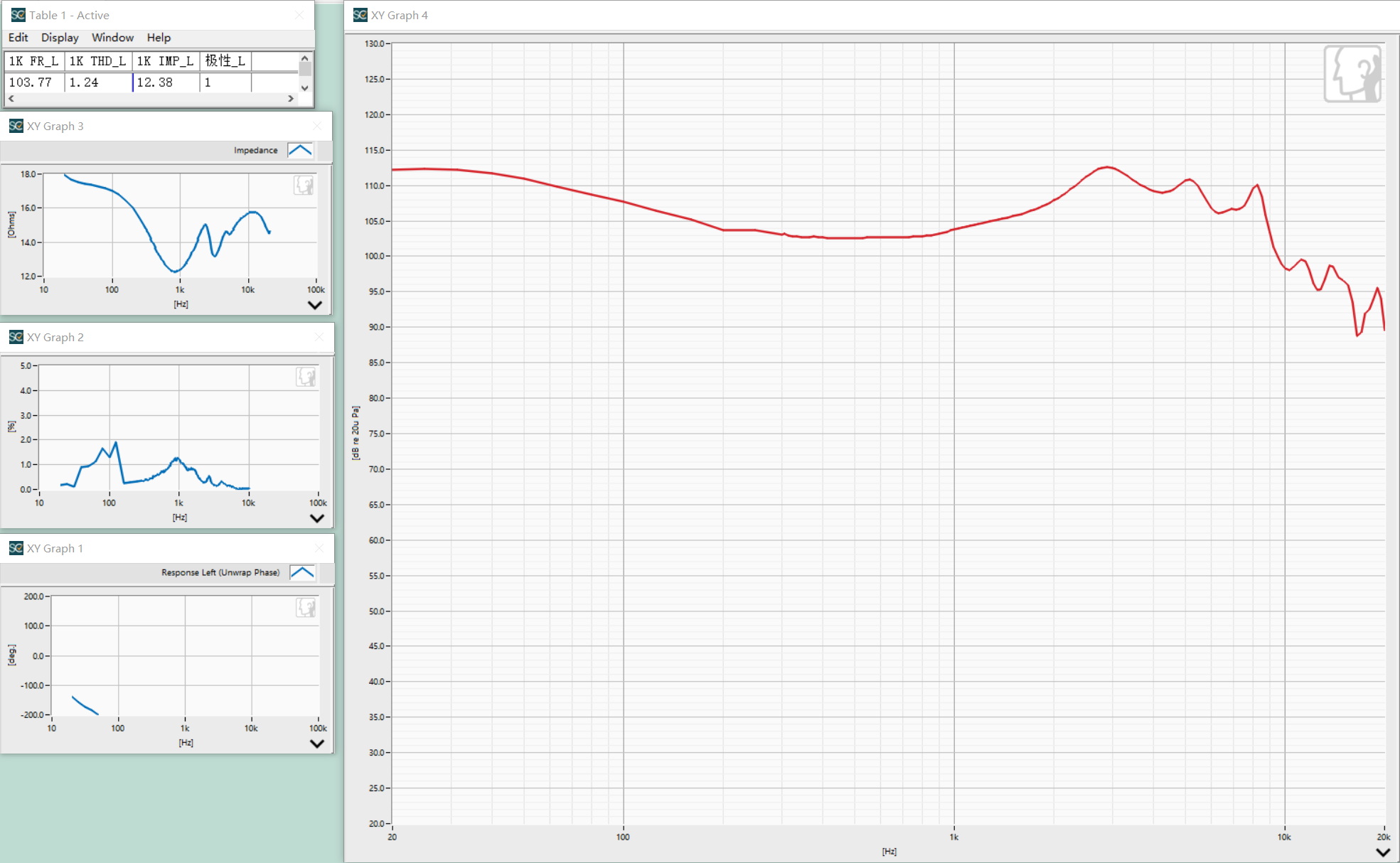

Sound Frequency Test
To ensure optimal audio fidelity, this model is subjected to comprehensive sound frequency testing. Covering a broad range from 10Hz to 20,000Hz and rated at 102 dB ±1.5 sensitivity, it captures subtle nuances in both low-end rumble and high-frequency details. The result is a balanced and immersive listening experience for critical audio tasks and everyday enjoyment.
Here is the frequency test result:
Comparison with Other Models
| Model | Driver Type | Frequency Response | Sensitivity | Impedance | Earbud Case | Tuning |
|---|---|---|---|---|---|---|
| LB-136 | 1*LCP 10mm Dynamic Speaker Driver | 10Hz – 20,000Hz | 102 dB ± 1.5 | 16 Ohm | 3D Printed | Custom PE Tube |
| HY-135 | 1*10mm Dynamic Speaker+4*BA+1*Bone conduction speaker | 10Hz–20,000Hz | 104 dB ±1.5 | 12 Ohm | 3D Printing | PE Tuning Tube Individual Tuning |
| YY-132 | 1*10mm Dynamic Speaker+6*BA | 10Hz–20kHz | 112 dB | 12 Ohm | 3D Printing | PE tuning tube individual tuning |
| RS-137 | 1*Plate Speaker Driver | 10Hz-20000Hz | 100dB +/-1.5 | 16 Ohm | 3D printing | PE tuning tube individual tuning |
| YZ-133 | 10mm Dynamic Speaker+4BA | 10Hz-20000Hz | 104dB+/-1.5 | 16 ohm | 3D Printing | PE tuning tube individual tuning |
Sound Signature
The YY-132 delivers a neutral and analytical sound signature. It emphasizes clean mids and articulate highs, making it ideal for studio reference and vocal-centric listening. The dual BA drivers offer lightning-fast response with remarkable resolution and separation.
Real-World Use Cases
- Perfect for vocalists, instrumentalists, and mixing engineers
- Optimized for acoustic and classical music playback
- Recommended for studio reference and critical A/B testing
Certifications & Build Quality
Each YY-132 unit is handcrafted in an ISO and CE certified facility with strict quality controls. It also complies with RoHS standards, ensuring safe materials and sustainable manufacturing practices.
Care & Maintenance Tips
- Gently clean nozzles with a soft brush to prevent blockage
- Keep the earphones in a dry, dust-free case when not in use
- Avoid exposing the BAs to moisture or sweat buildup
Customization Options
The YY-132 offers full shell color customization, name or logo engraving, and options for MMCX or 2-pin detachable cables. Tuning can be adjusted on request to suit performance or vocal monitoring applications.
Conclusion
With its dual balanced armature design and surgical sound precision, the YY-132 excels in professional environments and high-resolution playback scenarios. It’s a reliable choice for those seeking clarity, speed, and custom fit in one streamlined solution.
