High-performance 10mm earphone speaker driver with 32Ω impedance, 5mW rated power, PU+PEEK composite diaphragm, and stable acoustic response. Ideal for wired/wireless earphones requiring clear, durable, and efficient sound output.
| Specification | Details |
|---|---|
| Model | RD1036-02 |

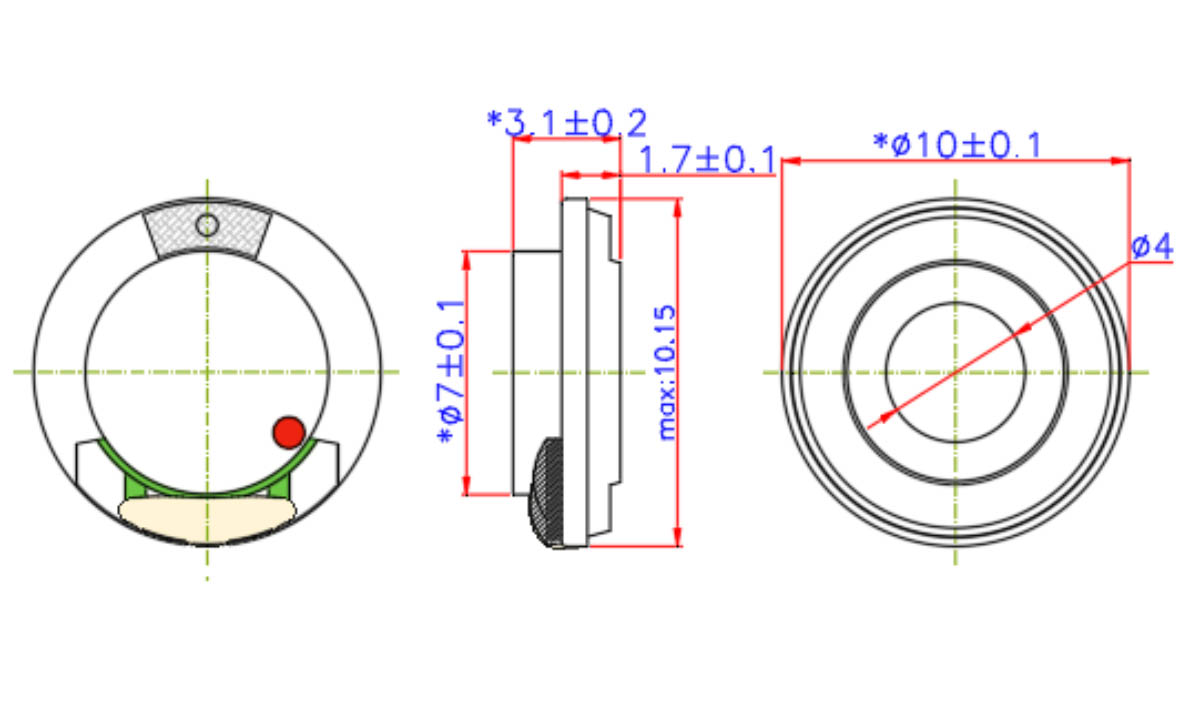

| Driver Size | 10 mm |
| Net Weight | Approx. 0.66 g |
| Impedance | 16Ω ±15% (@1 kHz, 1 mW) |
| SPL (Sensitivity) | 96 ±3 dB (at 1 kHz, 126 mVrms, 711EAR) |
| Resonance Frequency (Fs) | 1860 ±20% Hz (free air) |
| Rated Power / Max Power | 3 mW / 5 mW |
| Frequency Response | Shown in Figure 4 (test at 126 mVrms with 711EAR) |
| THD | ≤3% (50 Hz–8 kHz at 1 mW / 711EAR) |
| Rub & Buzz | No abnormal sound at 0.22 Vrms sweep |
| Diaphragm | PET (transparent) |
| Voice Coil | Copper |
| Magnet | NdFeB (blue zinc Cr3+) |
| Frame / Cover | SPCC / SUS (metal cover) |
| PCB | Fiber board with green lacquer |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -10°C to +60°C |
| Insulation Resistance | > 1 MΩ (at 50 V DC) |
| Reliability Tests | Load, humidity, drop, temperature cycle, high/low temp endurance, salt spray, tensile, vibration |
| Packaging | 100 pcs / tray; 10 trays per bundle; 1000 pcs per carton (follow grade labeling) |
