RD3002-03 | 30mm 32Ω Speaker Driver Unit

Size
30mm Round

Price
0$

MOQ
2000 Units

Leadtime
25 days

Technical
Specifications

Specification	Details
Model	RD3002-03
Commodity	30mm 32Ω Speaker Unit
Net Weight	Approx. 6.1g

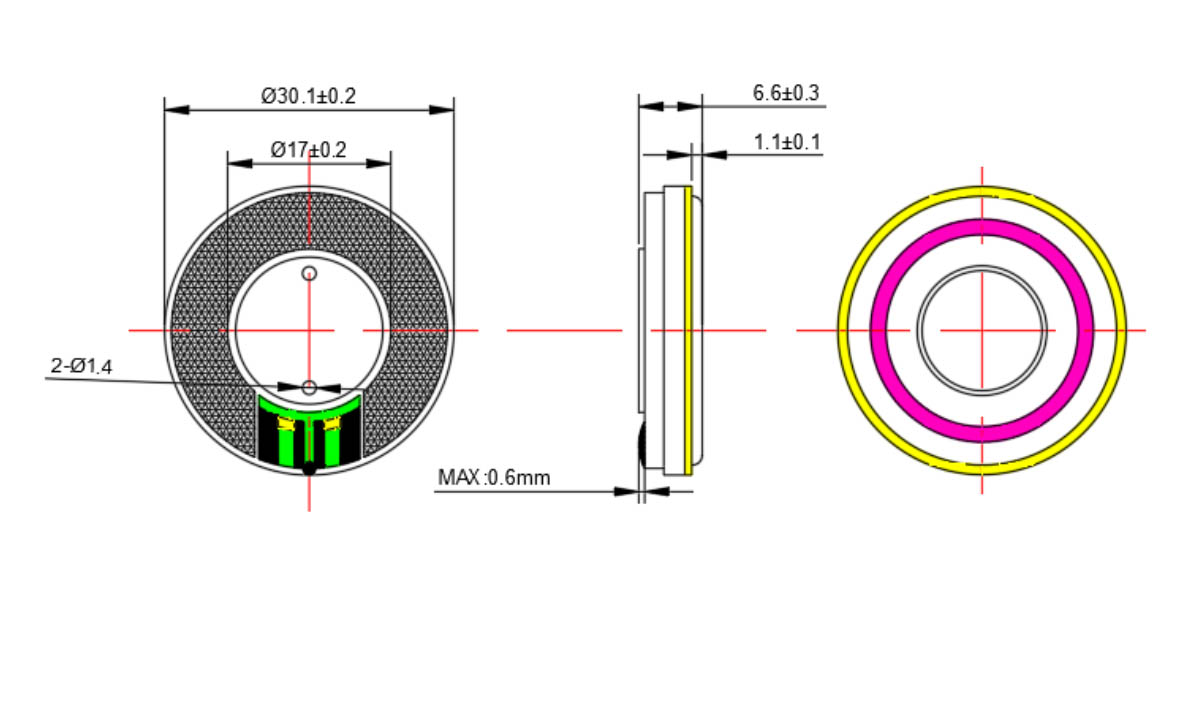

Dimensions	As per Figure 1
Operating Temperature	-20°C to +65°C
Storage Temperature	-20°C to +65°C (return to room temp before use)
Impedance	32Ω ±15% @ 1kHz, 1mW
Sound Pressure Level (SPL)	121.5 ±3 dB @ 1kHz, 179mVrms (with 711EAR)
Resonance Frequency	120Hz ±20% (Free Air)
Frequency Response	As per Figure 4
Rated Power	10mW
Max Power	20mW (Short Term)
Insulation Impedance	> 1 MΩ @ 50V DC
Rub & Buzz	No audible noise (50Hz–3kHz, input 0.56Vrms)
Total Harmonic Distortion (THD)	≤3% @ 1mW, 80Hz–8kHz (711EAR)
Polarity	“+” input causes diaphragm to move forward
Reliability – Load Test	0.56V white noise, 96 hours, room temp
Reliability – Humidity Test	40°C ±3, 90–95% RH, 48 hours (2h recovery)
Drop Test	1m height, 6 cycles
Temperature Cycle	25°C → 65°C → 25°C → -30°C → 25°C (6 cycles)
High Temp Test	+65°C ±3 for 48 hours
Low Temp Test	-20°C ±3 for 48 hours
Salt Spray Test	As per standard test conditions
Tensile Strength	0.5kg, 5 seconds
Vibration Test	10–55Hz, ≥3.5mm amplitude, 2 hours per direction
Materials	Frame: ABS Diaphragm: PU + LCP + Copper ring Yoke: SPCC (Zinc-plated) Plate: SPCC (Zinc-plated) Voice Coil: CCAW Magnet: NdFeB (Blue zinc) Tuning Paper: White PCB: Fiberboard (Green oil)

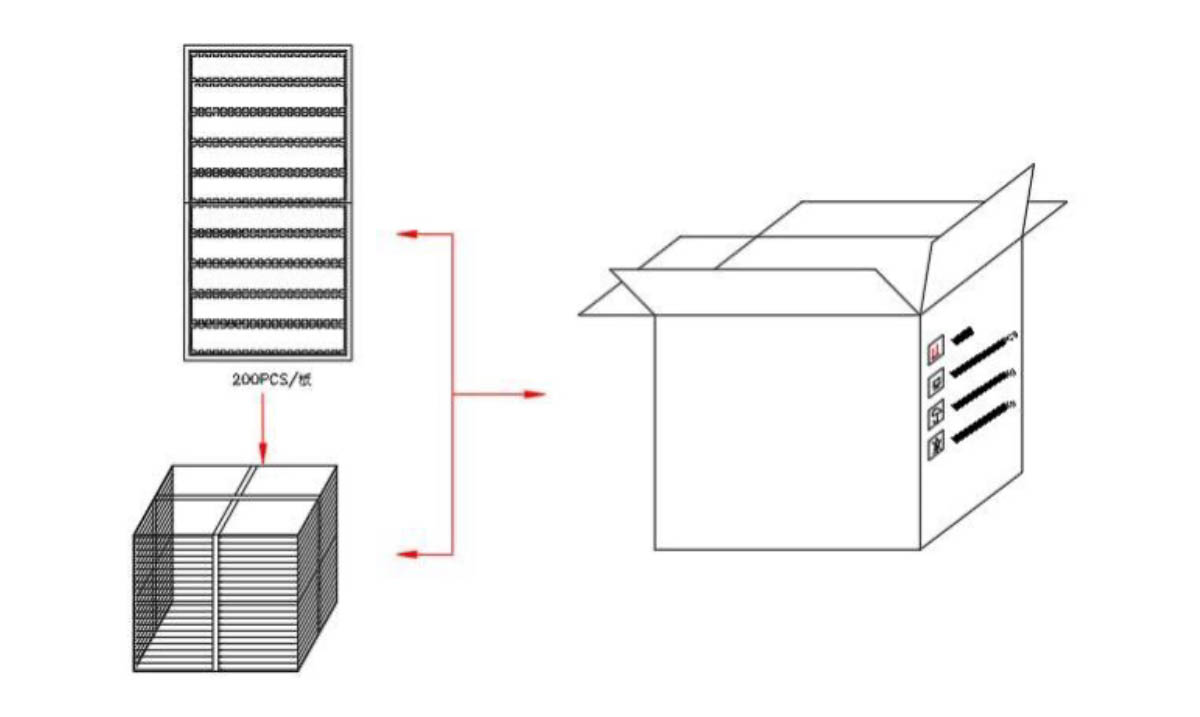

Packaging	200 pcs per tray 10 trays per carton Total: 2000 pcs/carton
