What is the impedance of the RD6001-01 driver unit?

The RD6001-01 speaker unit has an impedance of 150Ω ±15% at 1kHz with 1mW input.

Is the RD6001-01 suitable for high-end or professional headphones?

Yes, it is optimized for professional-grade and high-fidelity headphones, delivering up to 128dB SPL with low distortion and a wide frequency response.

What diaphragm material is used in the RD6001-01 driver?

The diaphragm uses a composite of carbon fiber, PU, and a copper ring, offering excellent acoustic accuracy and durability.

What is the rated and maximum power for RD6001-01?

The rated power is 20mW, and the short-term maximum power is 30mW.

What is the typical use case for this driver?

This driver is ideal for use in over-ear or studio headphones requiring high impedance, low distortion, and accurate sound reproduction.

RD6001-01 | 60mm Dynamic Headphone Speaker Unit | 150Ω | High SPL

<--

-->

Designed By: SpeakerDriver
Product ID: RD6001-01

RD6001-01 | 60mm Dynamic Headphone Speaker Unit | 150Ω | High SPL | Carbon Fiber Diaphragm

RD6001-01 is a high-impedance 60mm headphone speaker driver engineered for precise and powerful audio output.It features a composite carbon fiber diaphragm, NdFeB magnet, and delivers 128dB SPL at 1.73Vrms with low distortion.Ideal for professional and studio-grade headphone applications requiring high sensitivity and clean response.

Size
60mm

Price
0$

MOQ
2000 Units

Leadtime
25 days

Technical
Specifications

Specification	Details
Model	RD6001-01

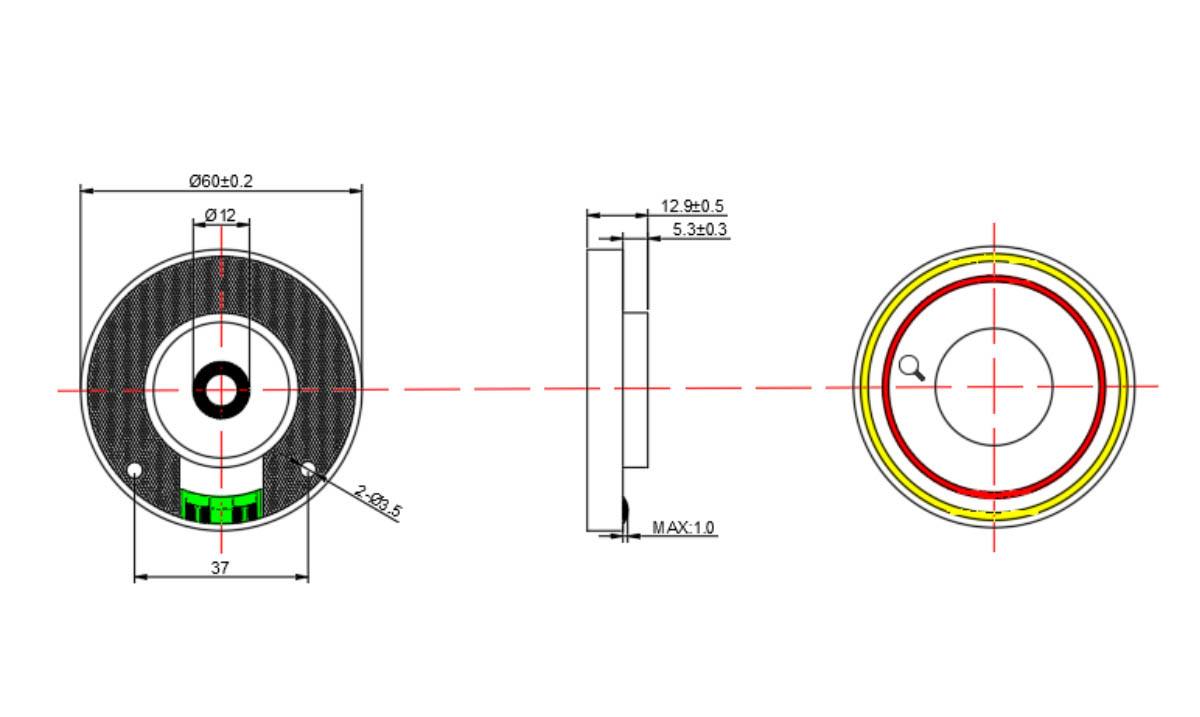

Driver Unit Size	⌀60mm
Impedance	150Ω ±15% @ 1kHz
Rated Power	20mW
Maximum Power	30mW
SPL (Sound Pressure Level)	128 ±3dB @ 1kHz, 1.73Vrms input (318EAR)
Resonance Frequency	90Hz ±20% (Free Air)
Frequency Response	50Hz – 5kHz (Typical)
THD (Total Harmonic Distortion)	≤3.0% (50Hz–5kHz @ 1mW)
Diaphragm Material	Carbon Fiber + PU + Copper Ring
Magnet Material	NdFeB (Neodymium Iron Boron)
Insulation Resistance	>1MΩ @ 50V DC
Polarity	Positive voltage to "+" terminal causes diaphragm to move forward
Net Weight	Approx. 38.5g
Operating Temperature	-10°C to +65°C
Storage Temperature	-10°C to +65°C
