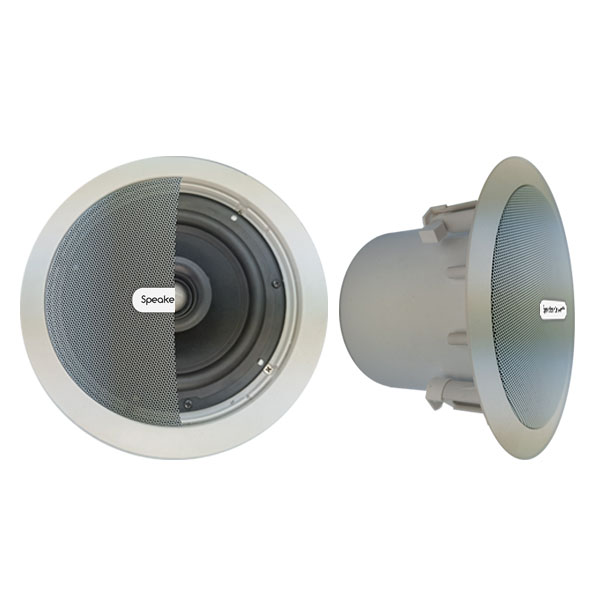

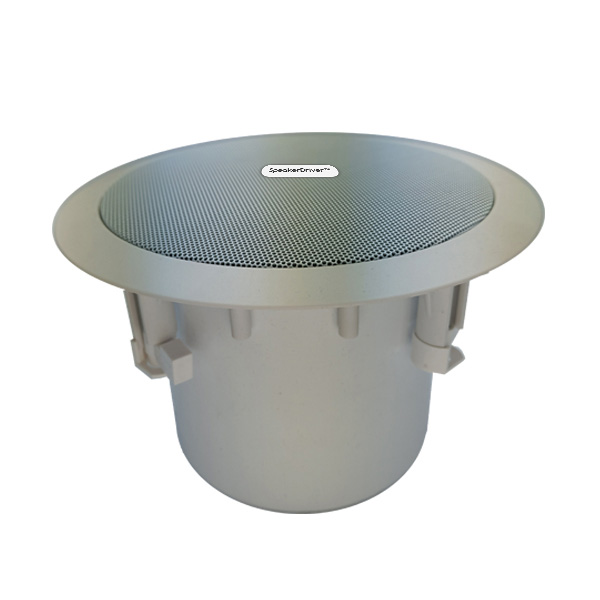

W165H21F01 | 6.5" Ceiling Speaker with Iron Drum
A 6.5-inch coaxial ceiling speaker with iron drum, 100W power, 90dB sensitivity, 8Ω impedance, and wide 85Hz–20kHz frequency range. Ideal for indoor installations with fastener-based mounting.
<---->
- Designed By: SpeakerDriver
- Product ID: W165H21F01
Technical
Specifications
| Specification | Details |
|---|---|
| Model | W165H21F01 |
| Type | 6.5 Inch Coaxial Ceiling Speaker |
| Dimensions (Diameter × Height) | 230 × 147 mm |
| Shape | Round with Iron Drum |
| Weight | 2.25 ± 0.5 Kg |
| Application | Indoor |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 30 mm |
| Nominal Impedance | 8Ω |
| Frequency Range | 85Hz – 20kHz |
| Sensitivity | 90dB @1W/1m |
| Rated Power | 100W |
| Distortion | ≤5% |
| MOQ | 1000 pcs |
| Lead Time | 50 Days |
| Features |
Professional in-ceiling full-frequency speaker 6.5" coaxial full-range unit Fastener installation design—no accessories required Frequency response (±3dB): 62Hz–20kHz Material: Spray-painted iron drum |
