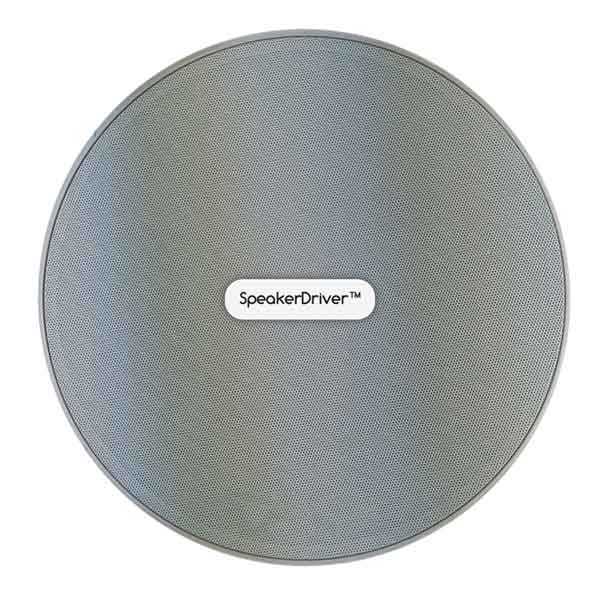

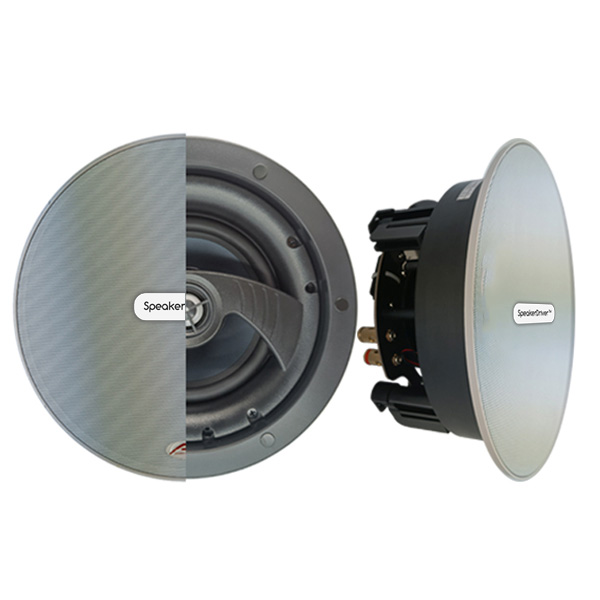

W230H22L08 | 6.5" Narrow Side Ceiling Speaker (Steel Gray)
A 6.5-inch narrow side round ceiling speaker designed for indoor audio systems, featuring 60W power, 88dB sensitivity, ferrite magnet, and wide 45Hz–20kHz frequency response.
<---->
- Designed By: SpeakerDriver
- Product ID: W230H22L08
Technical
Specifications
| Specification | Details |
|---|---|
| Model | W230H22L08 |
| Dimensions (Diameter × Height) | 238 × 112 mm |
| Shape | Round |
| Type | Ceiling Speaker |
| Weight | 2.03 ± 0.5 kg |
| Use | Indoor |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 38 mm |
| Nominal Impedance | 8Ω |
| Frequency Range | 45Hz – 20kHz |
| Sensitivity | 88dB @1W/1m |
| Rated Power | 60W |
| Distortion | ≤5% |
| MOQ | 1000 pcs |
| Lead Time | 50 Days |
