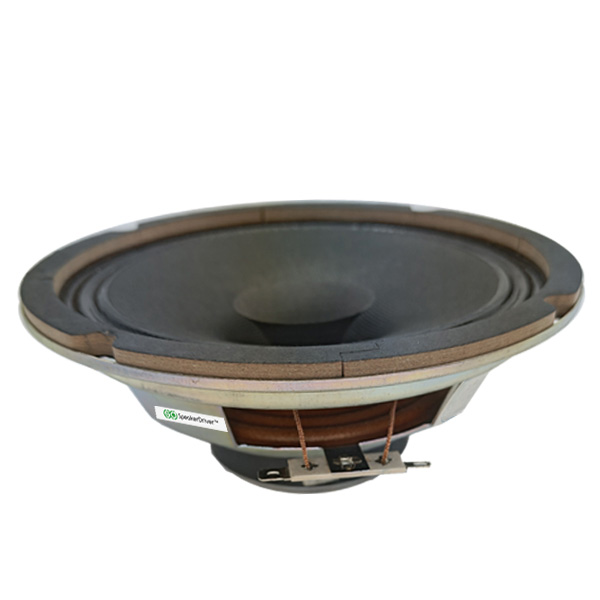

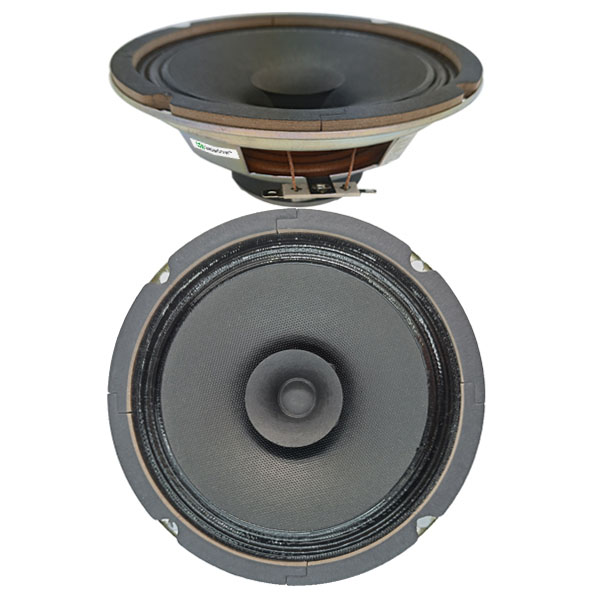

W6518R | 6.5" Full Range Speaker Driver
A 6.5-inch full range speaker driver with 94dB sensitivity, ferrite magnet, 20mm voice coil, and a wide 70Hz–20kHz frequency response, ideal for indoor audio systems.
<---->
- Designed By: SpeakerDriver
- Product ID: W6518R
Technical
Specifications
| Specification | Details |
|---|---|
| Model | W6518R |
| Dimensions (Diameter × Height) | 165 × 67 mm |
| Shape | Round |
| Type | Full Range Speaker |
| Weight | 0.512 ± 0.5 Kg |
| Use | Indoor |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 20 mm |
| Nominal Impedance | 8Ω |
| Frequency Range | 70Hz – 20kHz |
| Sensitivity | 94dB @1W/1m |
| Rated Power | 6W |
| Distortion | ≤0.05% |
| Lead Time | 45 Days |
| MOQ | 3000 pcs |
